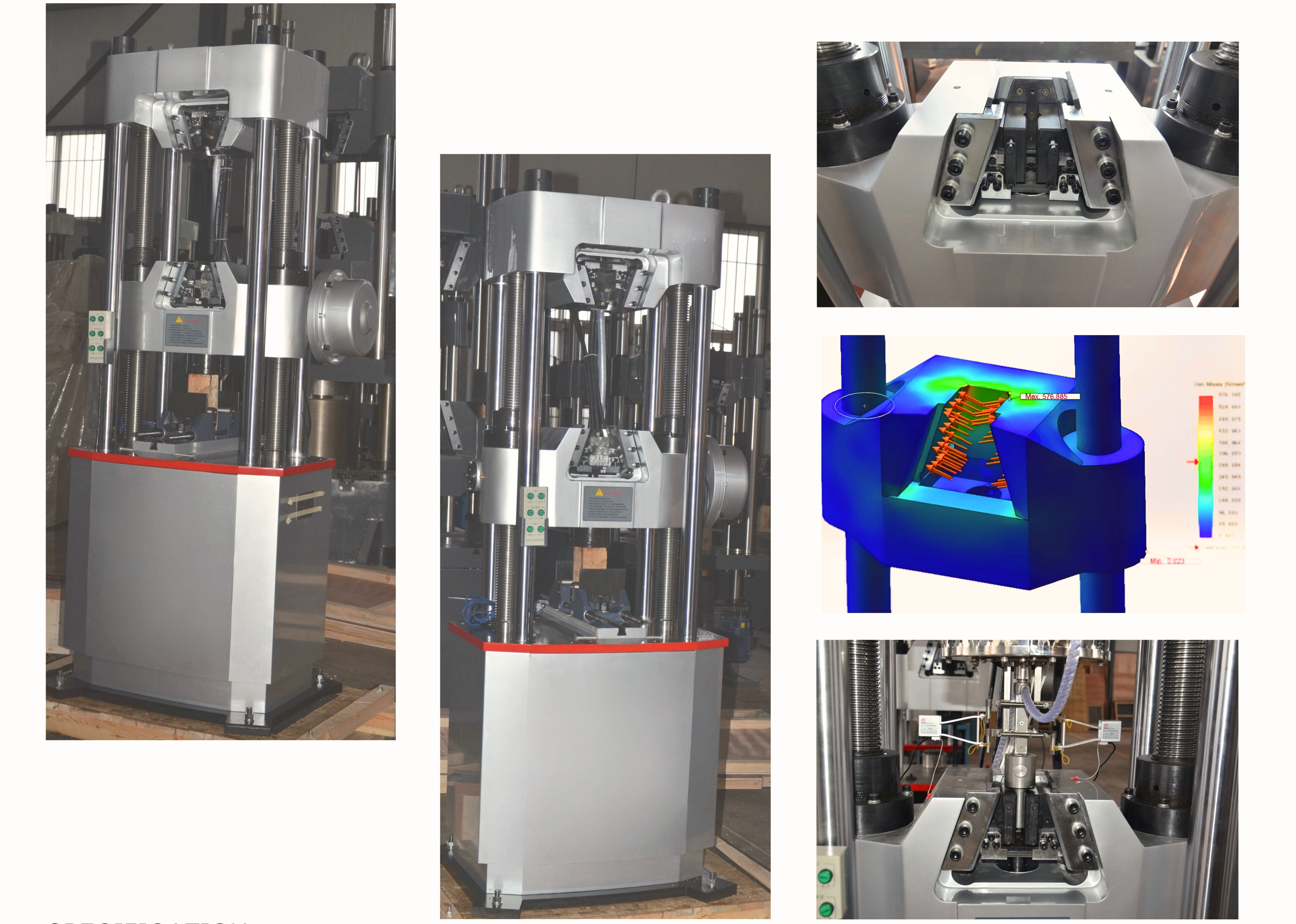

Hydraulic Universal Testing Machine 300kN-2000kN
Standards
ASTM E8/E8M-16: Tension Testing of Metallic Materials
ASTM D638: Tensile Properties of Plastics
ASTM D903: Peel or Stripping Strength of Adhesive Bonds
ISO 6892-1: Metallic materials. Tensile testing. Ambient temperature
ISO 7500-1: Metallic materials - Verification of static uniaxial testing machines
Specifications
| Parameters | UTM-300G | UTM-600G | UTM-1000G |
|---|---|---|---|
| Max. Load | 300kN/67443lbf | 600kN/134,885lbf | 1000kN/224,809lbf |
| Structure | Upper for Tension, Lower for Compression | ||
| Piston stroke | 255mm/10" | ||
| Crosshead Speed | 190mm/min ( 7.5in/min) | 190mm/min ( 7.5in/min) | |
| Max. tensile space | 600mm/23.6" | 800mm/31.5" | |
| Max. compression space | 500mm/19.7" | 700mm/27.6" | |
| Round Specimen Range | 0.39"~1.26" | 0.39"~1.57" | 0.39"~2.36" |
| Flat Specimen Range | 0.08"~0.69" | 0.08"~1.18" | 0.08"~1.77" |
| Compression platen | Φ120mm/4.72" | 180x180mm/7.1"x7.1" | |
| Dimensions | 35.4"X25.6"x80.2" | 36.4" x28.5"×92.0" | 38.0°X30.0"x101.3" |
| Weight | 1800kg/3968lbs | 2800kg/6173lbs | 3500kg/7716lbs |
