Frame/load cell sizes from 5 kN to 300 kN

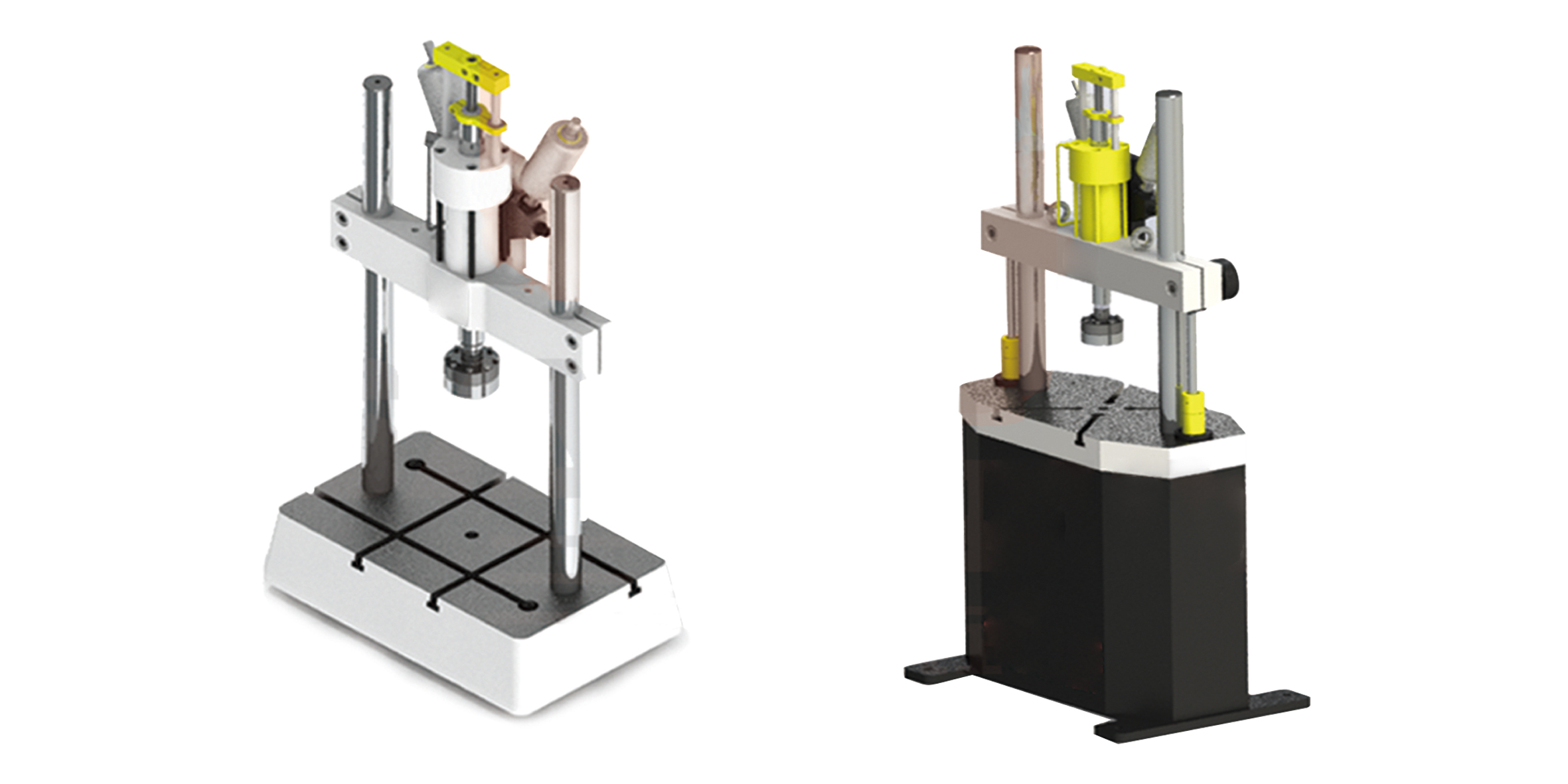

High-stiffness, precision-aligned load frame with twin columns
Designed for both dynamic and static testing on a variety of materials and components
Helps students and researchers understand the fatigue behavior, durability, and performance limits of the materials
Model | DS-1503 | DS-1104 | DS-1204 | DS-1504 | DS-1105 | DS1-205 | DS1-305 |
Maximum Static Test Force (kN) | ±5 | ±10 | ±20 | ±50 | ±100 | ±200 | ±300 |
Maximum Dynamic Test Force (kN) | ±5 | ±8 | ±16 | ±40 | ±80 | ±160 | ±250 |
Actuator Amplitude (mm) | ±100 (travel 200mm) | ±75 (travel 150mm) | |||||
Frequency Range (Hz) | 0.01~100 | 0.01~75 | 0.01~50 | 0.01~35 | |||
Distance between Columns (mm) | 440 | 500 | 550 | 620 | |||
Test Space Height (mm) | 600 (300) | 700 (400) | 1000 (500) | 1100 (600) | |||
Overall Dimensions (mm3) | 680*400*1050 | 870*580*1850 | 980*620*2700 | 1.05*0.75*3.05 | |||
Mainframe Stiffness (N/m) | ≥2.5*108 | ≥3.0*108 | |||||
Mainframe Weight (kg) | 400 | 520 | 800 | 900 | 950 | 1300 | 1350 |
