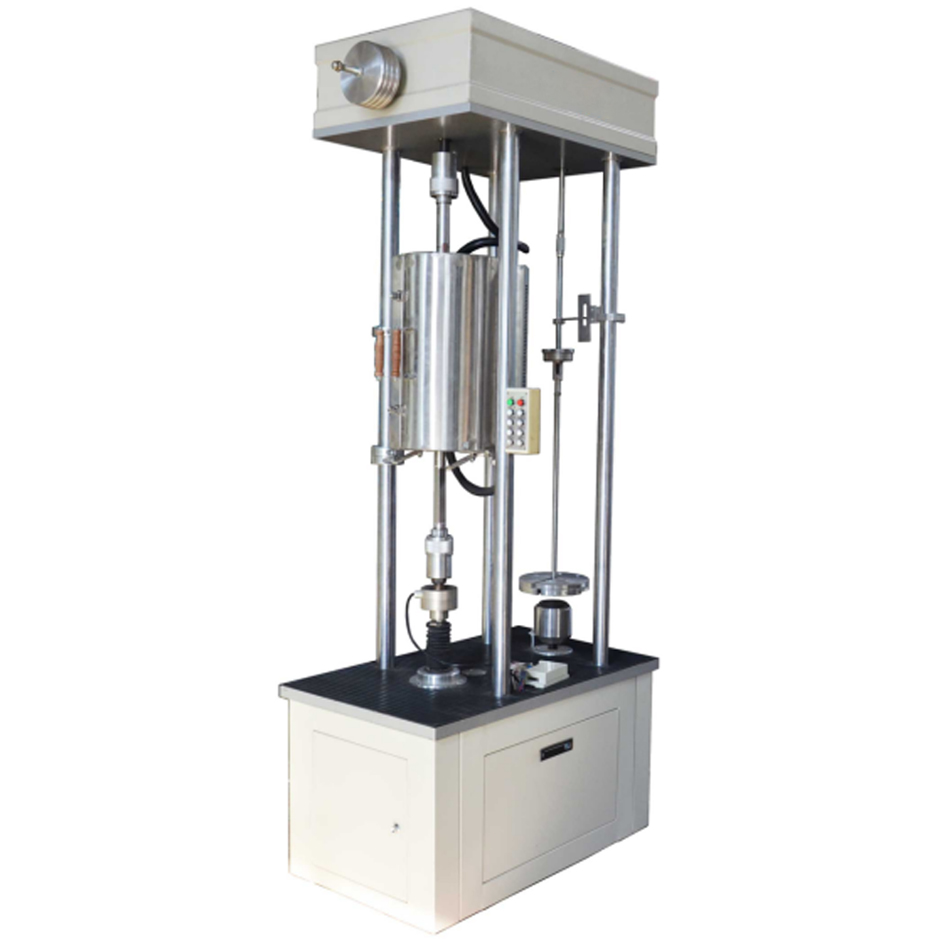

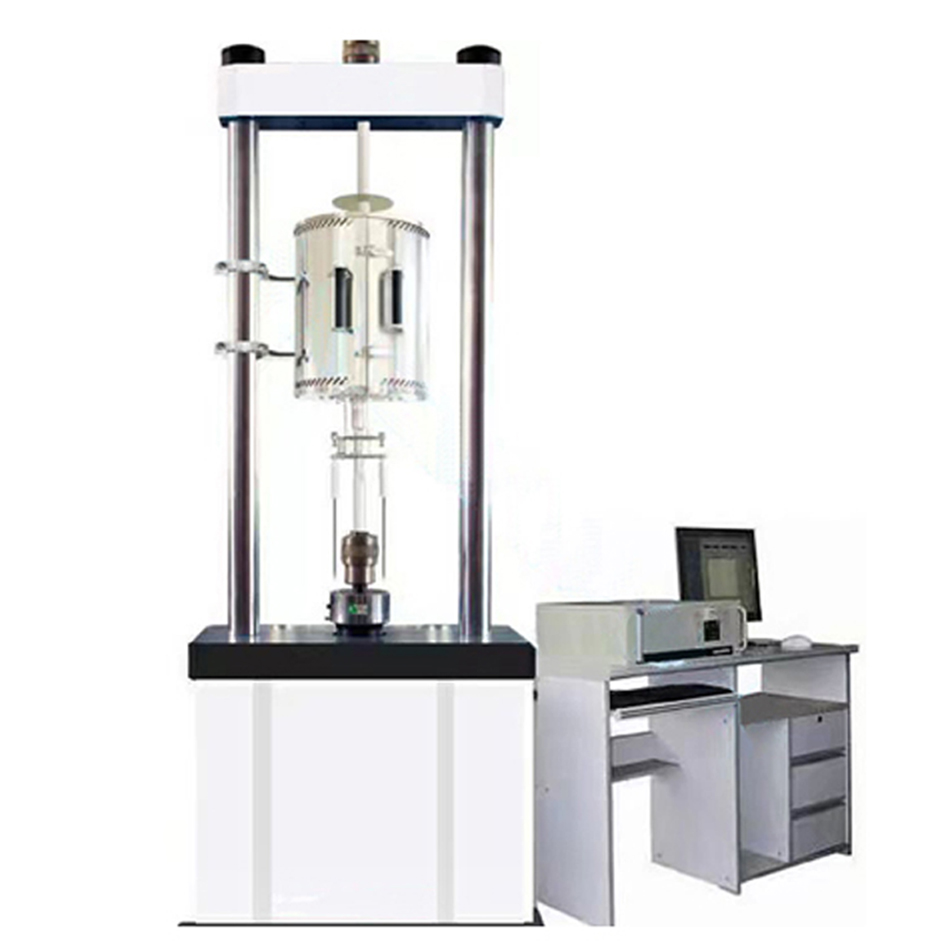

Stress Rupture & Creep Testing Machine
Standards
ASTM E139 Standard Test Methods for Conducting Creep, Creep-Rupture, and Stress-Rupture Tests of Metallic Materials
ISO 204 Metallic materials uniaxial creep testing in tension.
ISO/R 206 Creep stress rupture testing of steel at elevated temperature
Specifications
| Model | CRT-50 |
| Max. Force | 50kN |
| Calibration Class | Class 0.5 |
| Force range | 0.4%-100FS% |
| Force control stability | (±0.2)% |
| Displacement range | 200mm |
| Displacement Resolution | 0.001mm |
| Test Width | 400mm dual column |
| Center alignment | ≤8% |
| Dimension | 2100x710x540mm |
| Weight | Around 700kg |
| Model | CRT-30 |
| Max. Force | 30kN |
| Calibration Class | Class 0.5 |
| Force range | 0.4%-100FS% |
| Rod speed accuracy | (±0.5)% |
| Rod speed | 2.5-60mm/min |
| Rod speed Resolution | 0.1mm/min |
| Test Width | 400mm dual column |
| Center alignment | ≤8% |
| Dimension | 2100x710x540mm |
| Weight | Around 400kg |
