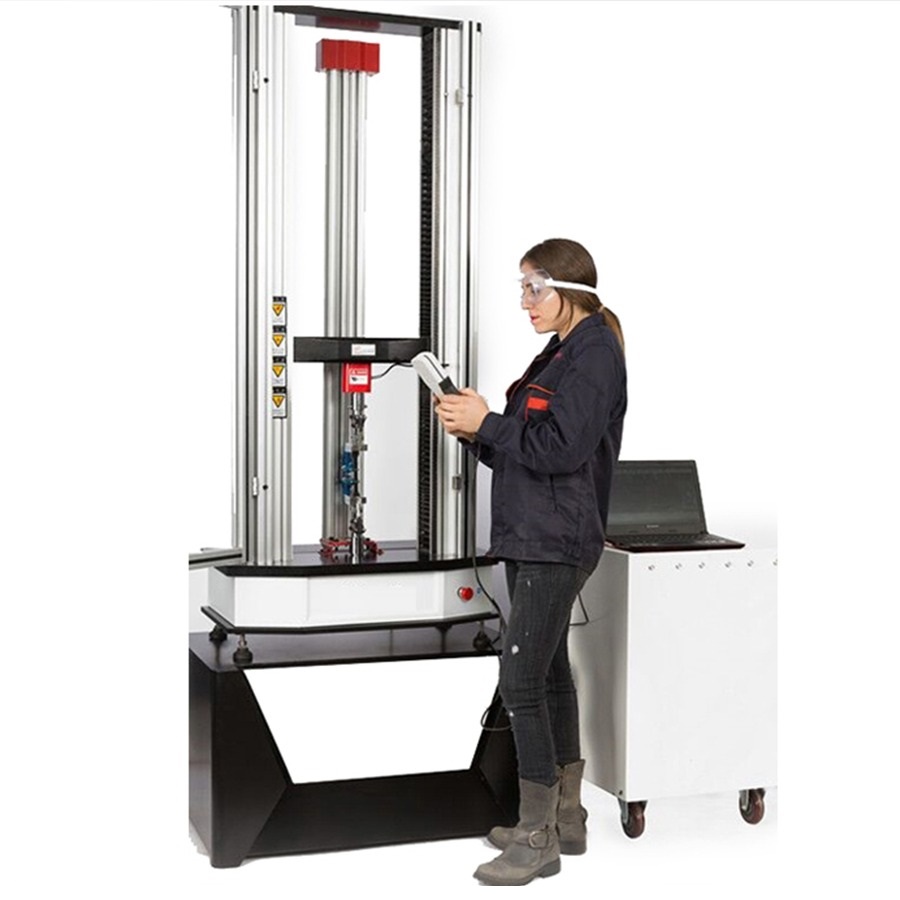

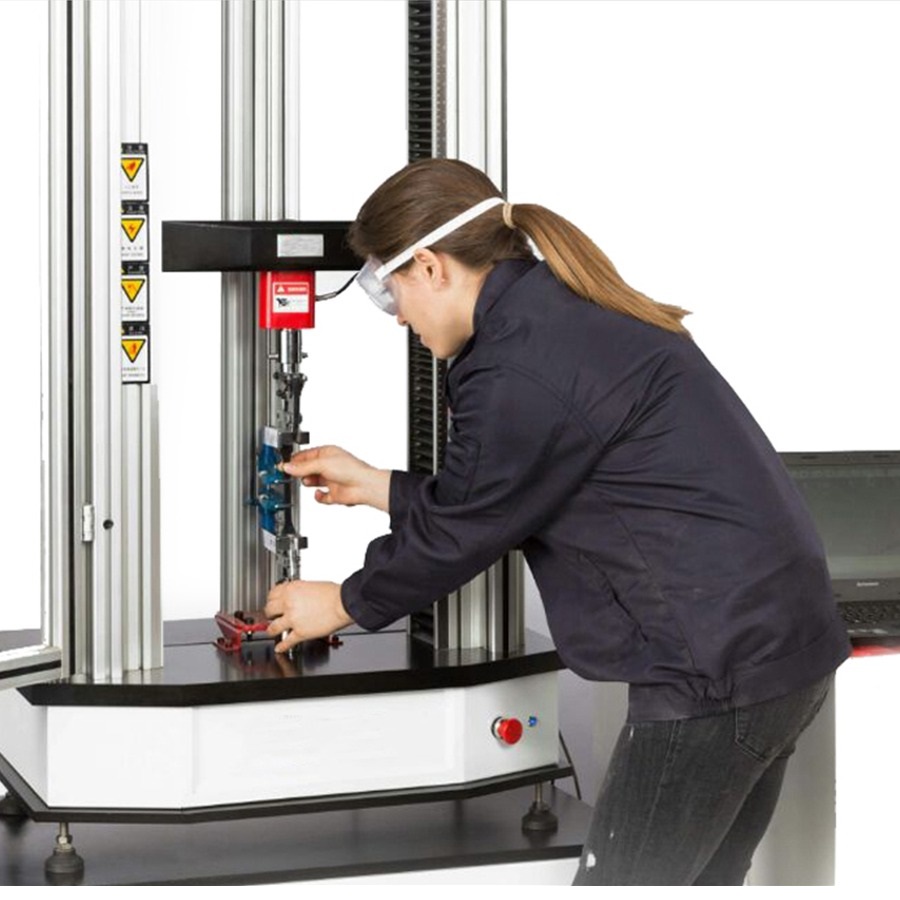

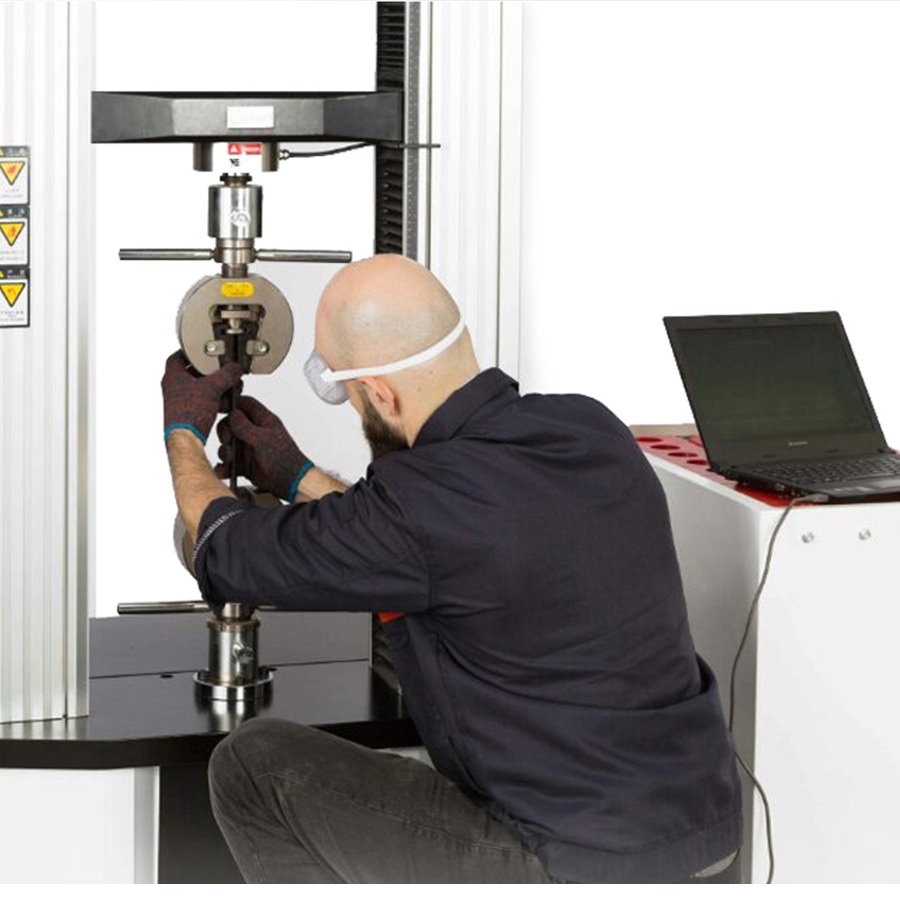

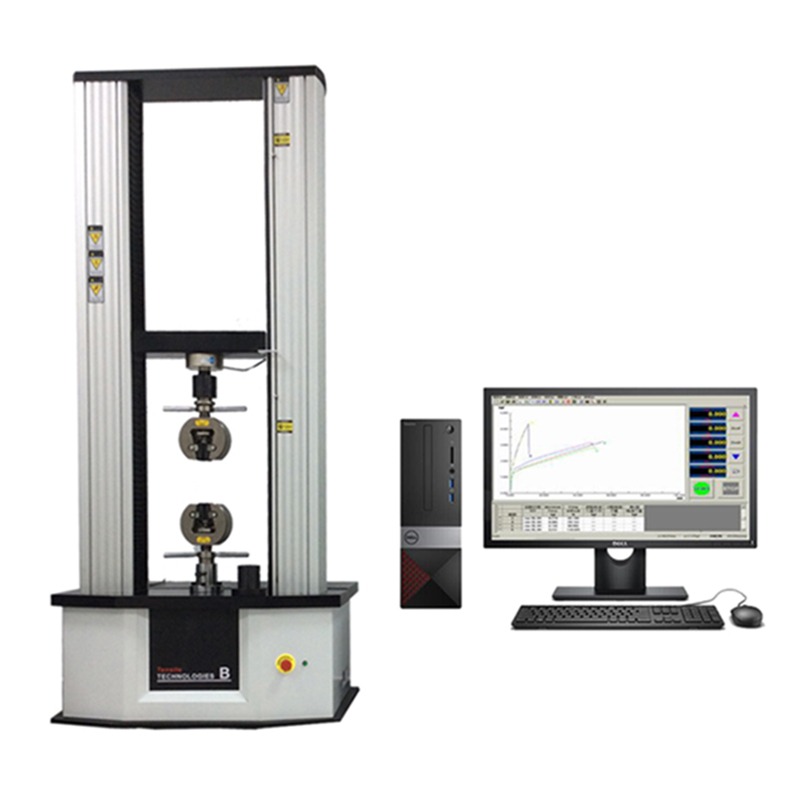

Dual Column Electrical Testing Machine 20kN-50kN
Standards
ASTM E8/E8M-16: Tension Testing of Metallic Materials
ASTM D638: Tensile Properties of Plastics
ASTM D903: Peel or Stripping Strength of Adhesive Bonds
ISO 6892-1: Metallic materials. Tensile testing. Ambient temperature
ISO 7500-1: Metallic materials - Verification of static uniaxial testing machines
Specifications
| Model | ETM-20kN | ETM-50kN |
|---|---|---|
| Capacity (optional) | 20, 50, 100, 500, 1000, 2000kg | 2000, 3000, 5000kg |
| Unit (switchable) | Kg, lb, N, kN | Kg, lb, N, kN |
| Load resolution | 1/100000 - 1/1000000 | 1/100000 - 1/1000000 |
| Load accuracy | ±0.5% | ±0.5% |
| Stroke (exclude the grips) | 1000mm | 950mm |
| Effective width | 420mm | 445mm |
| Test speed | 0.001~1000mm/min | 0.001~1000mm/min |
| Speed accuracy | ±0.3% | ±0.3% |
| Stroke resolution | 0.01mm | 0.01mm |
| Dimension | 760*435*1650mm | 910*650*2040mm |
| Weight (approx.) | 230kg | 520kg |
