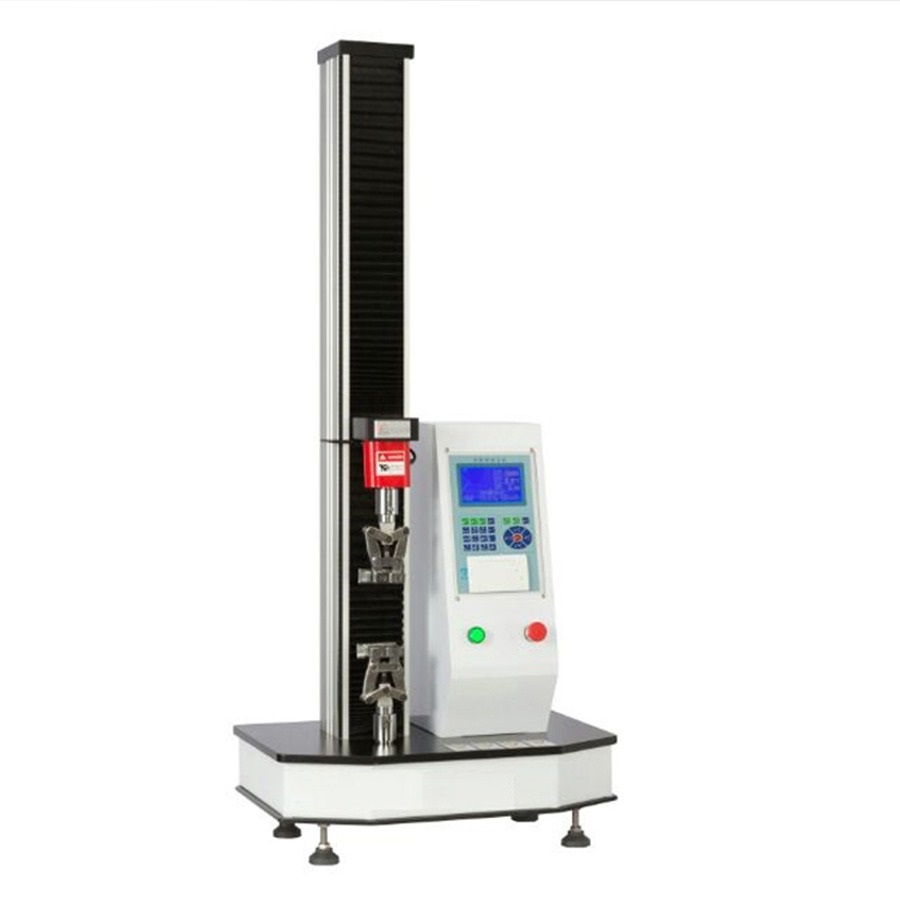

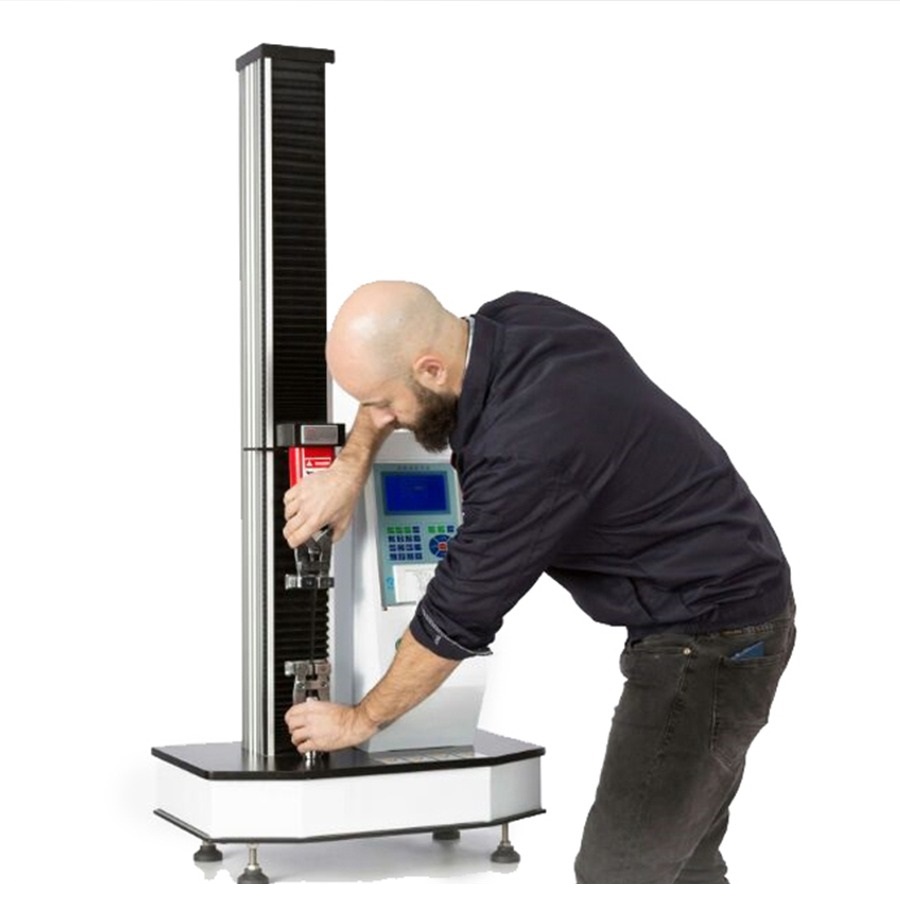

Single Column Electrical Testing Machine 5kN
Overview
The Single Column Test Machines offer an excellent solution for conducting tension and compression tests with test force requirements of up to 5 kN (1,125 lbf). They boast impressive speeds of up to 1000 mm/min, making them highly versatile. These machines are widely utilized in industrial quality control laboratories and research centers. It is designed to accommodate various materials, including metals, plastics, ceramics, composites, and more, this series of machines provides the capability to test a broad range of materials.
Standards
ASTM E8/E8M-16: Tension Testing of Metallic Materials
ASTM D638: Tensile Properties of Plastics
ASTM D903: Peel or Stripping Strength of Adhesive Bonds
ISO 6892-1: Metallic materials. Tensile testing. Ambient temperature
ISO 7500-1: Metallic materials - Verification of static uniaxial testing machines
Specifications
| Model | UTM-5kN |
|---|---|
| Capacity (optional) | 5,10,20,50,100,200,500kg |
| Unit (switchable) | kg, lb, N, kN |
| Load resolution | 1/100000 - 1/1000000 |
| Load accuracy | -0.005 |
| Stroke (exclude the grips) | 1000MM |
| Effective width | 445mm |
| Test speed | 0.001~1000mm/min |
| Speed accuracy | -0.003 |
| Stroke resolution | 0.001mm |
| Motor | AC servo motor 500W |
| Dimension (L X W X H) | 620*400*1320mm |
| Weight (approx) | 160kg |
| Power supply | 220v/110,60HZ/50HZ single phase |
