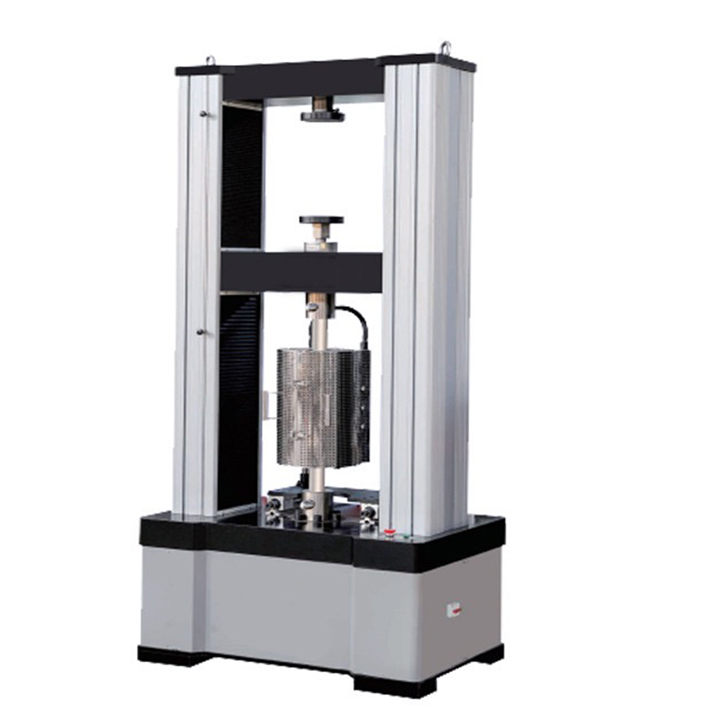

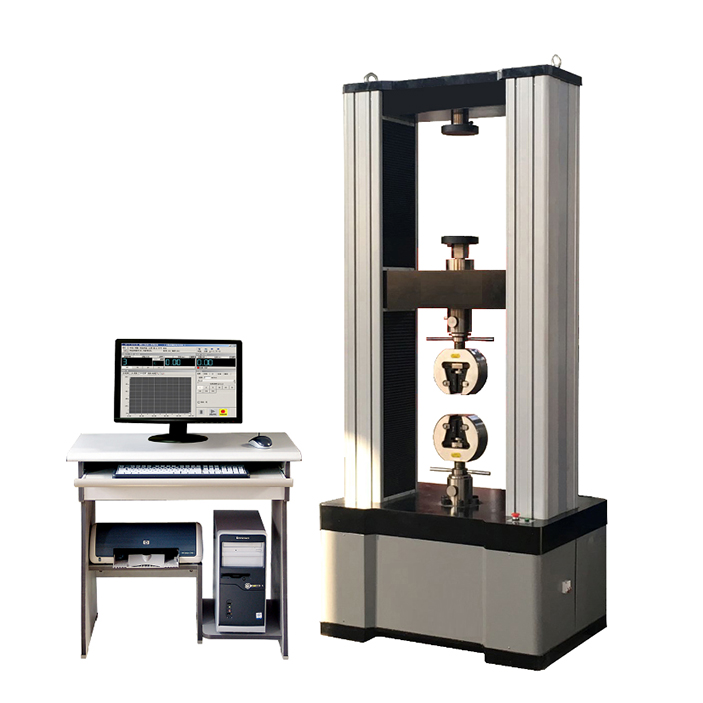

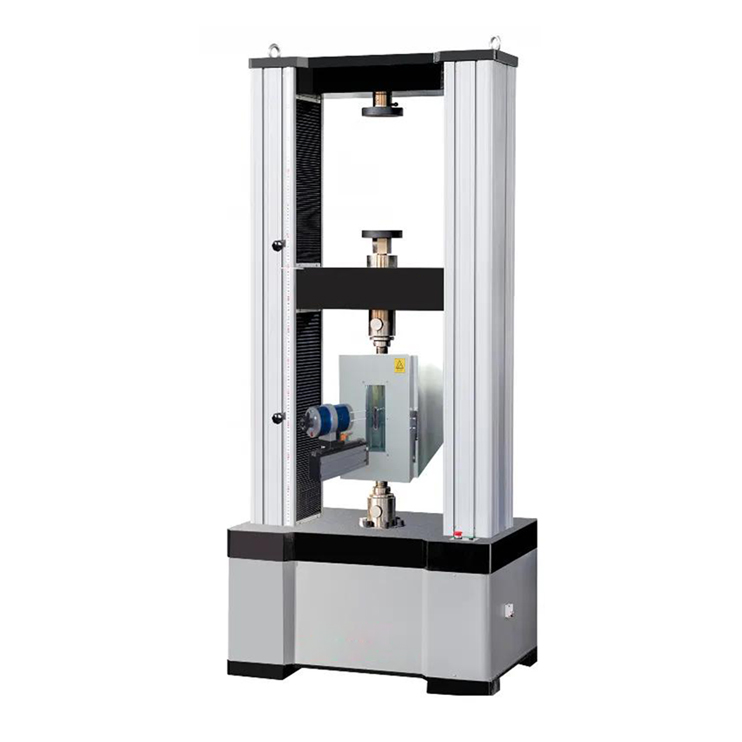

Dual Column Electrical Testing Machine 200kN-60kN
Standards
ASTM E8/E8M-16: Tension Testing of Metallic Materials
ASTM D638: Tensile Properties of Plastics
ASTM D903: Peel or Stripping Strength of Adhesive Bonds
ISO 6892-1: Metallic materials. Tensile testing. Ambient temperature
ISO 7500-1: Metallic materials - Verification of static uniaxial testing machines
Specifications
| Model | ETM-200kN/300kN | ETM-500kN/600kN |
|---|---|---|
| Capacity | 200kN/300kN | 500kN/600kN |
| Load Range | 0.2%--100% FS | 0.2%--100% FS |
| Load accuracy | ±0.5% | ±0.5% |
| Frame type | Floor standing | Floor standing |
| Crosshead Travel (exclude the grips) | 1600mm | 1600mm |
| Test Travel space | 650mm | 600mm |
| Effective width | 600mm | 650mm |
| Test speed | 0.001~500mm/min | 0.001~500mm/min |
| Position Resolution | 0.001mm | 0.001mm |
| Power | 3kW | 5kW |
| Frame Dimension | 1100×780×2680mm | 1150×780×2850mm |
| Weight (approx.) | 1600kg | 2300kg |
