Electric Portable Brinell HardnessTester
Overview
The PHB-3000 Series Electric Portable Brinell Hardness Tester sets a new benchmark for convenience and accuracy in field and laboratory applications. Introduced in 2021 as a patented innovation, it utilizes advanced hydraulic technology to generate a stable 3000 kgf test force through a 10 mm ball — all controlled with a single button for effortless, repeatable measurements.
Features
Automatic Force Application and Hold: With a single button, the PHB-3000E automatically applies and maintains the Brinell test force in full compliance with international standards, ensuring consistent and globally accepted results.
Effortless, Labor-Saving Operation: Eliminates manual handle loading — reducing operator fatigue and significantly improving testing efficiency.
Real-Time Status Indication: Intuitive indicator lights provide clear visual feedback of operating status, making it easy to monitor each test step at a glance.
High-Accuracy Performance: Delivers test force precision that fully meets ISO and ASTM Brinell hardness requirements, guaranteeing stable, repeatable data.
Standards
ASTM E10-23:Standard Test Method for Brinell Hardness of Metallic Materials
Specifications

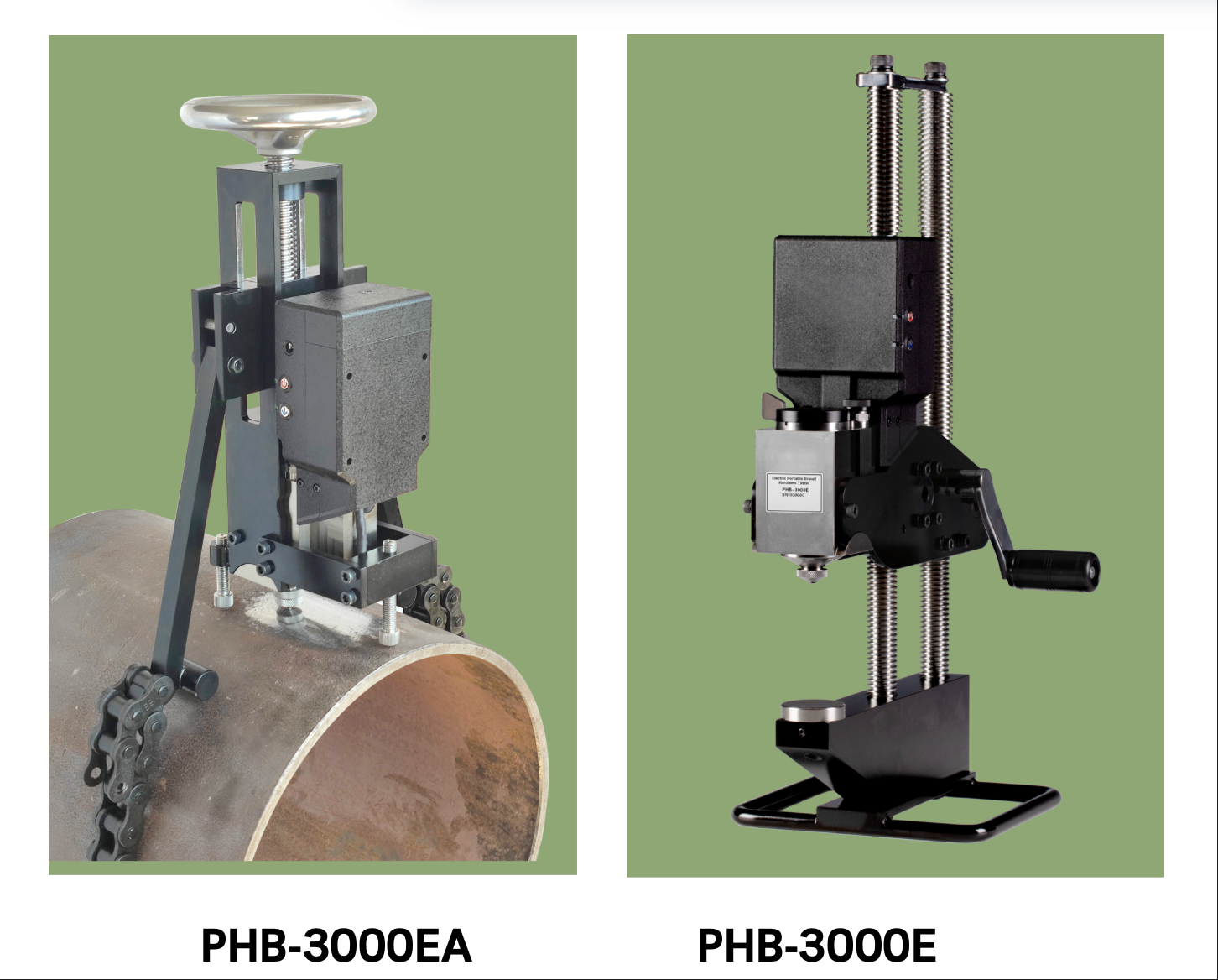

| Model | PHB-3000EA | PHB-3000E |
|---|---|---|
| Brinell Measuring Range | 100–650 HBW | 95–653 HBW |
| Test Force | 3000 kgf (1000, 750, 500 kgf optional) | |
| Indenter | Ø10 mm Carbide Ball (Ø5 mm optional) | Ø10 mm Carbide Ball (Ø5 mm optional) |
| Test Pipe / Size | Pipe Ø150–550 mm / 5.9″ × 21.7″ | Test Size (H×D): 350 × 100 mm / 13.8″ × 3.93″ |
| Lithium Battery Life | Approx. 450 tests per charge | |
| Dimension (L×W×H) | 16.5″ × 28.3″ × 17.7″ | 16.5″ × 28.3″ × 17.7″ |
| Weight | 14.5 kg / 32 lbs | 13.7 kg / 30.2 lbs |
