Hydraulic Portable Brinell HardnessTester
Features
On-site hardness testing of steel, nonferrous metals, castings, forgings, and heat-treated semi-finished parts.
Designed for components too large for conventional benchtop testers. Provides a high-accuracy and reliable alternative to traditional Leeb testers.
Brinell indentations are measured using an optical indentation measurement system, with hardness values displayed directly.
Standards
ASTM E10-23:Standard Test Method for Brinell Hardness of Metallic Materials
Specifications

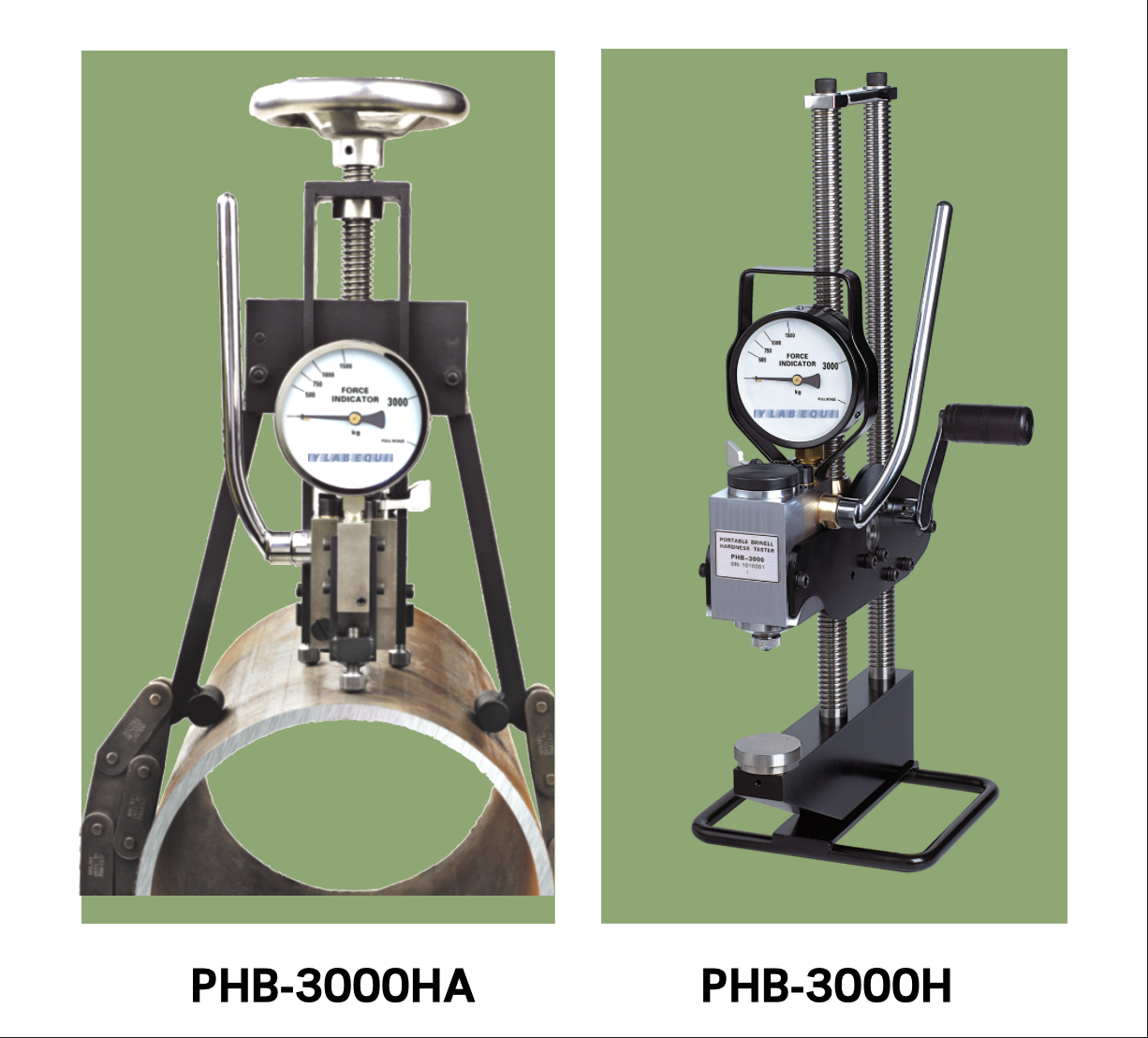

| Model | PHB-3000HA | PHB-3000H |
|---|---|---|
| Brinell Measuring Range | 32–650 HBW | |
| Test Force | 3000 kgf (1000, 750, 500 kgf optional) | |
| Indenter | Ø10 mm Carbide Ball (Ø5 mm optional) | Ø10 mm Carbide Ball (Ø5 mm optional) |
| Test Pipe / Size | Pipe Ø150–550 mm / 5.9″ × 21.7″ | Test Size (H×D): 350 × 100 mm / 13.8″ × 3.93″ |
| Load Application | Automatic hydraulic load | Manual hydraulic load |
| Application | Steel pipes, bearings, gas cylinders | General Brinell hardness testing |
| Dimension (L×W×H) | 16.5″ × 28.3″ × 17.7″ | 16.5″ × 28.3″ × 17.7″ |
| Weight | 14.5 kg / 32 lbs | 13.8 kg / 30.4 lbs |
