Pin Brinell HardnessTester
Principle
Test force (F) = 1580 kgf, with a test ball diameter (D) = 7.26 mm, resulting in a force-to-diameter ratio (F/D²) of approximately 30. This follows the Brinell similarity principle and is equivalent to the standard test condition of 3000 kgf using a 10 mm ball.
Standards
ASTM E10-23:Standard Test Method for Brinell Hardness of Metallic Materials
Specifications

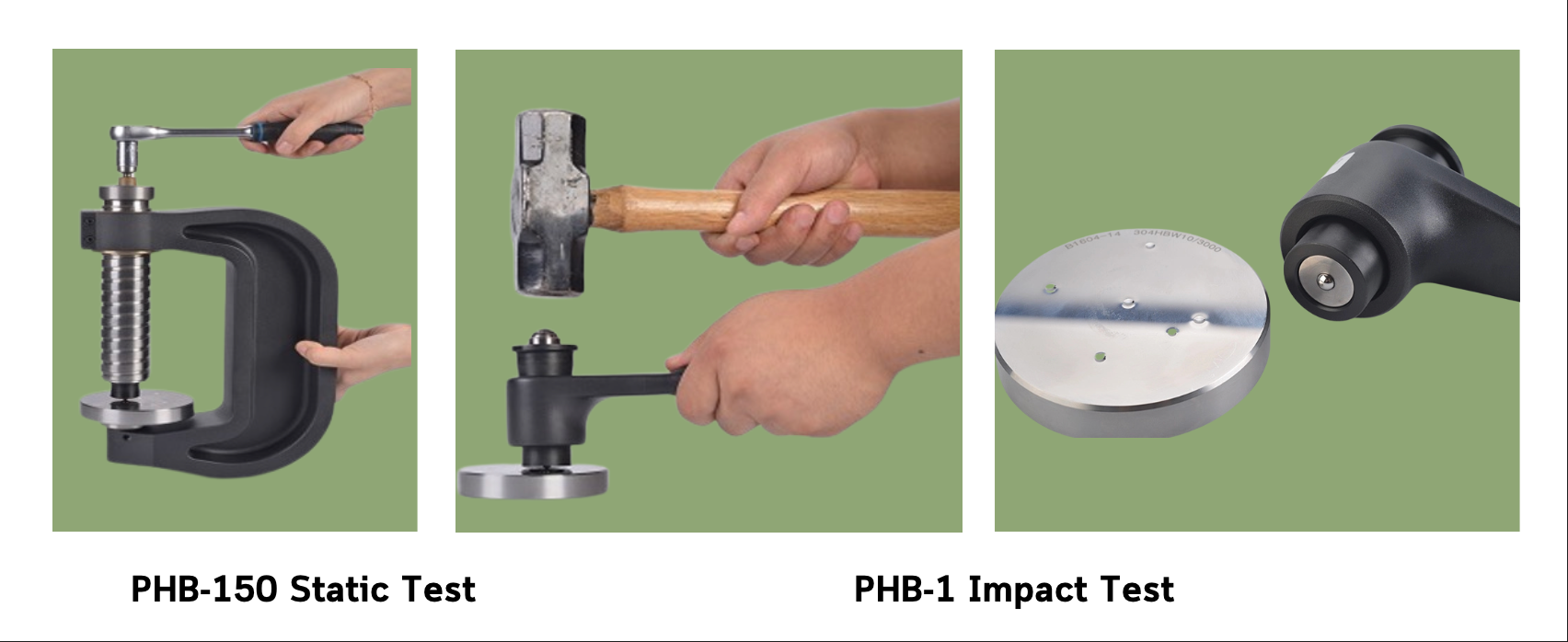

| Model | PHB-150 | PHB-1 |
|---|---|---|
| Test Force | 1,580 kgf | |
| Test Range |
100–650 HBW 7.26 mm / 0.286″ steel indenter (for 100–350 HBW) 4 mm / 0.157″ carbide alloy indenter (for 350–650 HBW) |
|
| Test Size (H×D) | 150 × 100 mm / 6″ × 4″ | No limit |
| Indication Deviation | ≤ 2–3 % | ≤ 5 % |
| Repeatability Deviation | ≤ 2–3 % | ≤ 5 % |
| Dimension (Package) | 29.5″ × 15.7″ × 10.6″ | 29.5″ × 15.7″ × 10.6″ |
| Weight | 4.2 kg | 0.8 kg |
| Standard Assembly |
Main Frame 7.26 mm Steel Indenter & Holder Impact Cylinder Holding Handle Brinell Hardness Block (HB10/3000) Pins (250 pcs/box) Pin Removal Tool 20× Reading Microscope Carrying Case |
Main Frame 7.26 mm Steel Indenter & Holder Flat Anvil and V-Shape Anvil Impact Cylinder Holding Handle Brinell Hardness Block (HB10/3000) Pins (250 pcs/box) Pin Removal Tool 20× Reading Microscope Rubber Protective Cover & Carrying Case |
| Optional Accessories |
Sphere Spot Anvil and Small Flat Anvil 4 mm Hard Alloy Sphere Indenter 40× Reading Microscope Brinell Indentation Measuring System |
4 mm Hard Alloy Sphere Indenter 40× Reading Microscope Brinell Indentation Measuring System |
