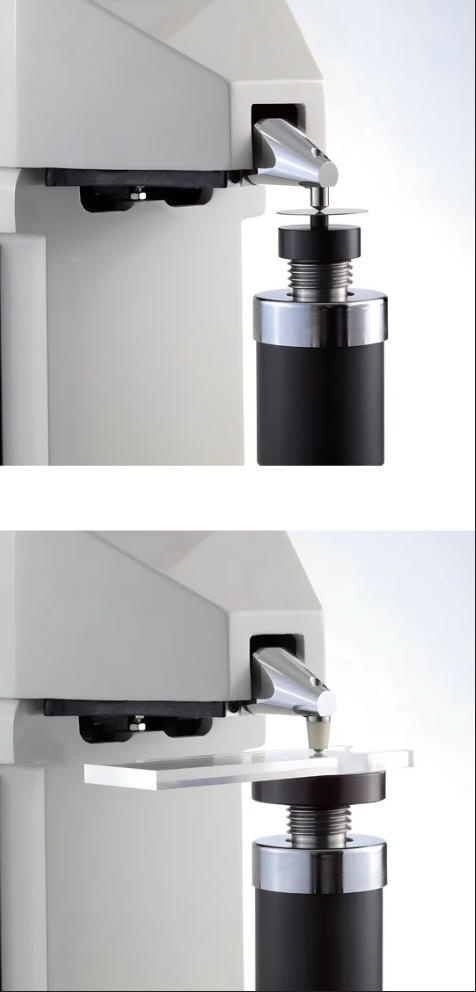

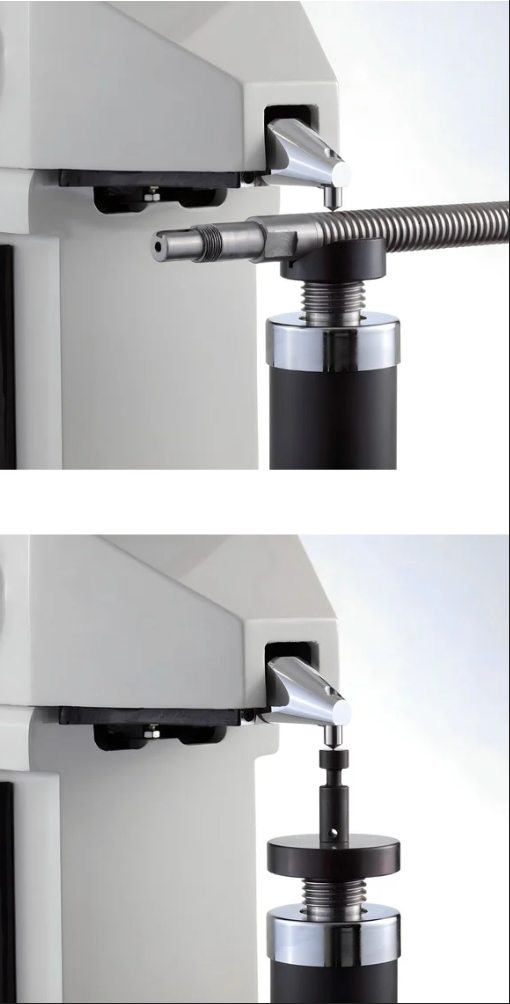

Protruding Nose Rockwell Hardness Tester
Overview
The HRS-150 digital Rockwell hardness tester with a touchscreen interface is a precision instrument known for its remarkable stability. It boasts an upgraded mechanical design that enhances its overall stability and is equipped with an 8-inch touchscreen display and a high-speed ARM processor to ensure swift and efficient operation. This instrument provides a comprehensive range of capabilities, an easy-to-understand display, a user-friendly interface, and dependable performance.
Standards
ASTM E18:Standard Test Methods for Rockwell Hardness of Metallic Materials
Features
Stability: Enhanced mechanical structure and cast body for stability and precise results.
Automatic Correction: Corrects for cylindrical and spherical surfaces, and software-based hardness value adjustments.
Database: Automatically stores and organizes test data for easy managemen.
Customizable Test Points: Configure 1 to 5 test points per group.
Statistical Analysis: Calculates max, min, and average hardness values.
Scale Conversion: Automatically converts hardness values between scales.
Data Transfer: Easily sends results to a computer via RS232.
Built-in Lighting: Independent lighting for low-light testing conditions.
Specifications
| Model | HRSS-150 Rockwell | HRSS-160 Superficial | HRSS-170 Twin |
|---|---|---|---|
| Hardness Range | 20–95 HRA, 10–100 HRBW, 10–70 HRC |
70–94 HR15N, 42–86 HR30N, 20–77 HR45N, 67–93 HR15TW, 29–82 HR30TW, 10–72 HR45TW |
20–95 HRA, 10–100 HRBW, 10–70 HRC 70–94 HR15N, 42–86 HR30N, 20–77 HR45N, 67–93 HR15TW, 29–82 HR30TW, 10–72 HR45TW |
| Preliminary Test Force | 98 N (10 kgf) | 29.42 N (3 kgf) | 98 N (10 kgf) / 29.42 N (3 kgf) |
| Total Test Force | 588.4 N, 980.7 N, 1471 N (60, 100, 150 kgf) | 147.1 N, 294.2 N, 441.3 N (15, 30, 45 kgf) | 588.4 N, 980.7 N, 1471 N (60, 100, 150 kgf) 147.1 N, 294.2 N, 441.3 N (15, 30, 45 kgf) |
| Workpiece |
Flat surfaces, cylindrical surfaces with a minimum outer diameter of 3 mm (0.12″), and inner ring surfaces with a minimum inner diameter of 23 mm (0.91″) |
||
| Resolution | 0.1 HR | 0.01 HR | 0.01 HR |
| Dimension (L×W×H) | 715 × 230 × 870 mm / 28.2″ × 9″ × 34.2″ | ||
| Weight | 100 kg / 220 lbs | 90 kg / 198 lbs | 120 kg / 265 lbs |
Standard Delivery
| Item | Name | Qty | Note |
|---|---|---|---|
| 1 | Main Body | 1 | |
| 2 | Diamond Indenter | 1 | |
| 3 | 1/16″ Ball Indenter | 1 | |
| 4 | Anti-Dust Cover | 1 | |
| 5 | Large Flat Anvil | 1 | Dimaeter 150mm/ 5.91'' |
| 6 | Small Flat Avil | 1 | Dimaeter 58mm/ 2.28'' |
| 7 | V-Shaped Anvil | 1 | |
| 8 | A Scale Hardness Standard Block | 1 | |
| 9 | B Scale Hardness Standard Block | 1 | |
| 10 | C Scale Hardness Standard Block | 3 | |
| 11 | Calibration Certificate | 1 | |
| 12 | Manual | 1 |
