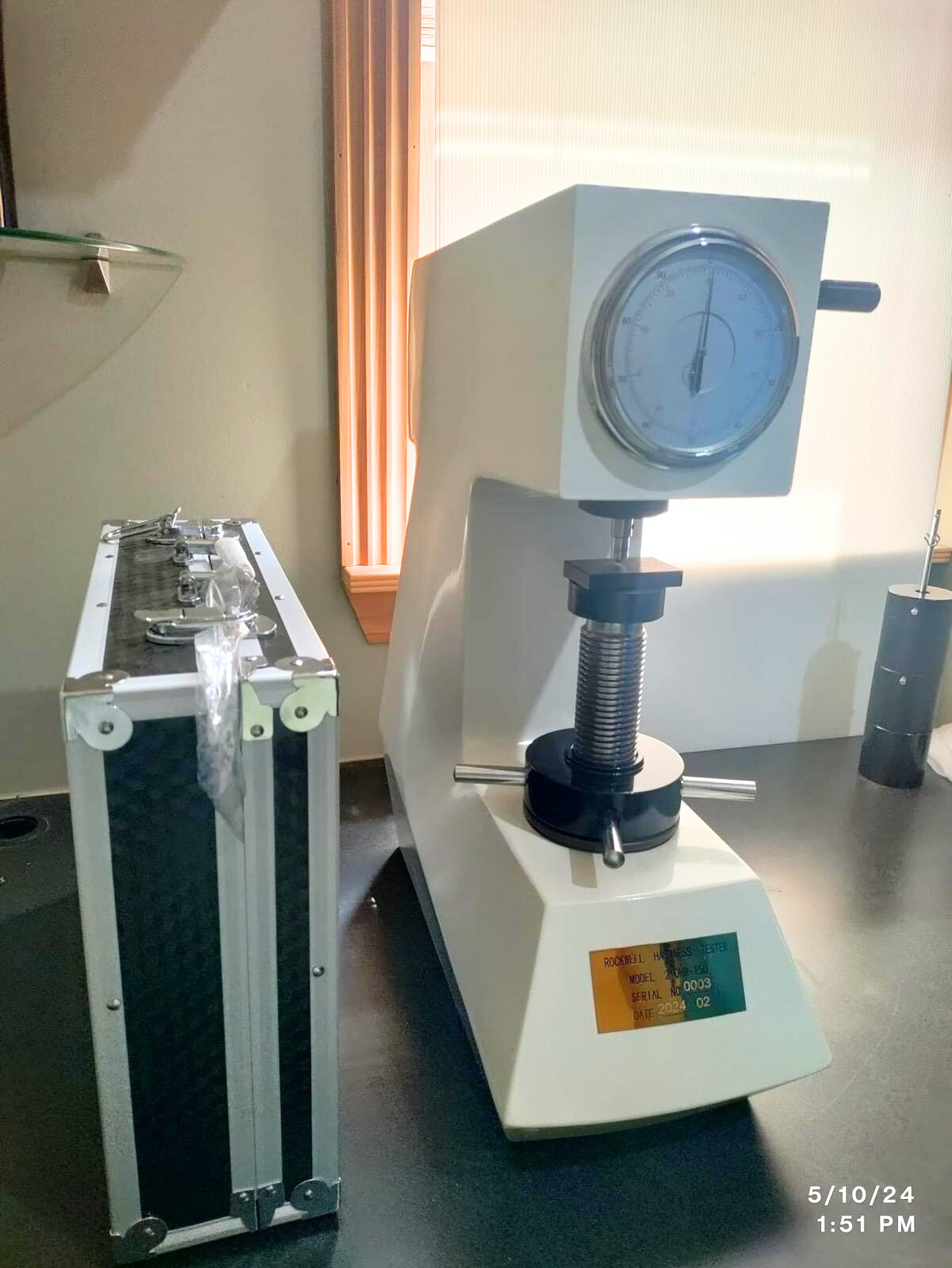

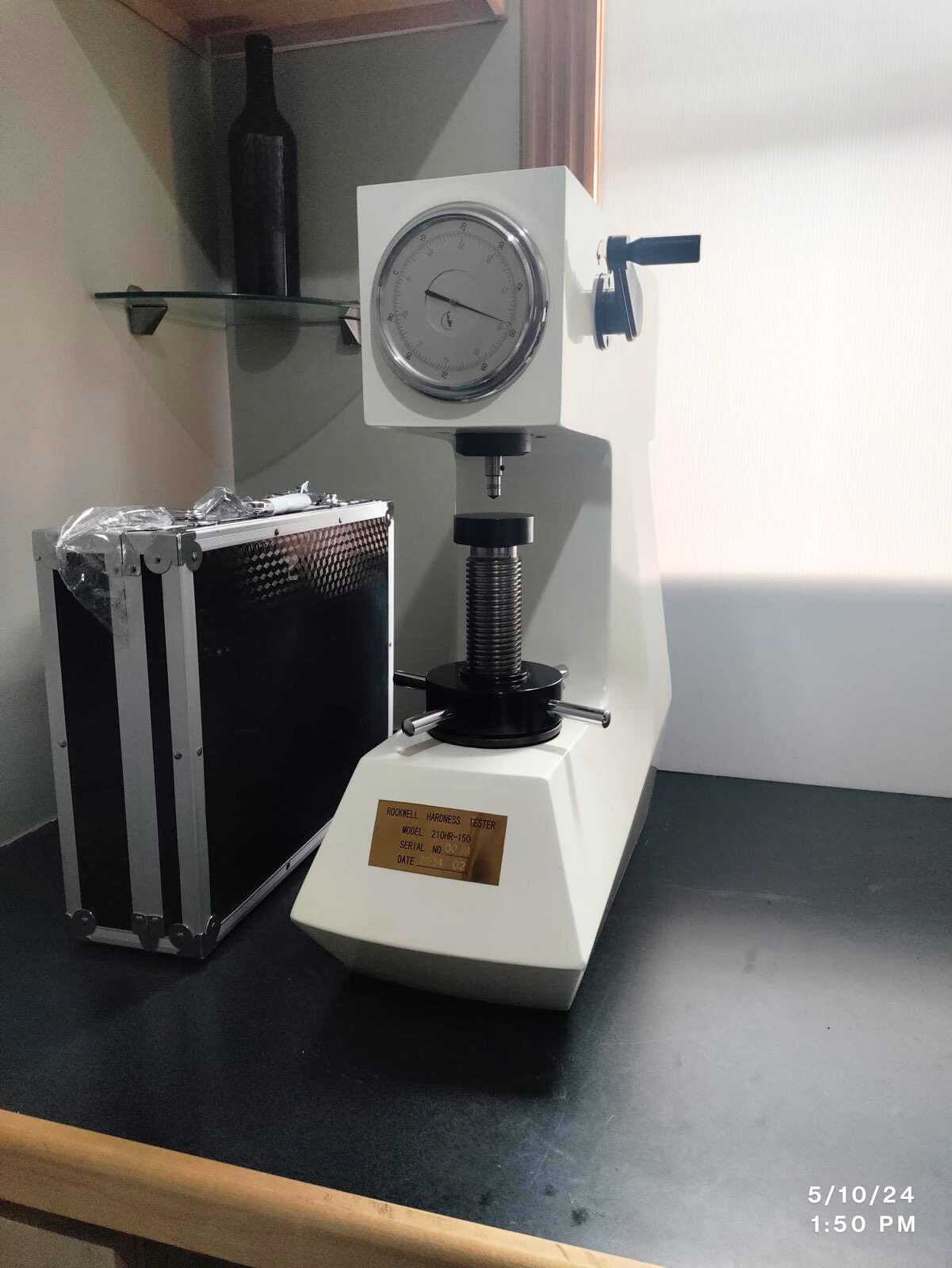

210-HR150 Rockwell Hardness Tester
Overview
Hardness is a key factor in understanding how strong metallic and alloyed materials are. It basically tells us how well they can withstand being pressed by something harder without getting permanently deformed. The Rockwell hardness test is a quick, convenient, and cost-effective way to measure hardness. It's super-efficient and easy to use. Plus, you can get hardness values directly from it, which makes it stand out compared to other tests. The Model 210HR-150 Rockwell Hardness Tester is perfect for measuring the hardness of hard alloys and different kinds of steel and it is great for labs in factories, research centers, and universities.
Standards
ASTM E18:Standard Test Methods for Rockwell Hardness of Metallic Materials
Specifications
| Model | 210HR-150 |
|---|---|
| Preliminary Test Force | 98 N (10 kgf) |
| Total Test Force | 588.4 N (60 kgf) / 980.7 N (100 kgf) / 1471 N (150 kgf) |
| Total Test Force Dwell Time | 1–30 s |
| Hardness Indication (Dial) | C: 0–100 B: 30–130 |
| Max Height of Specimens | 100 mm |
| Dimension (L×W×H) | 180 × 270 × 560 mm 7.08″ × 10.6″ × 24″ |
| Weight | 50 kg / 110.2 lbs |
| Power Supply | No need |
Standard Delivery
| Item | Name | Qty | Note |
|---|---|---|---|
| 1 | Main Body | 1 | |

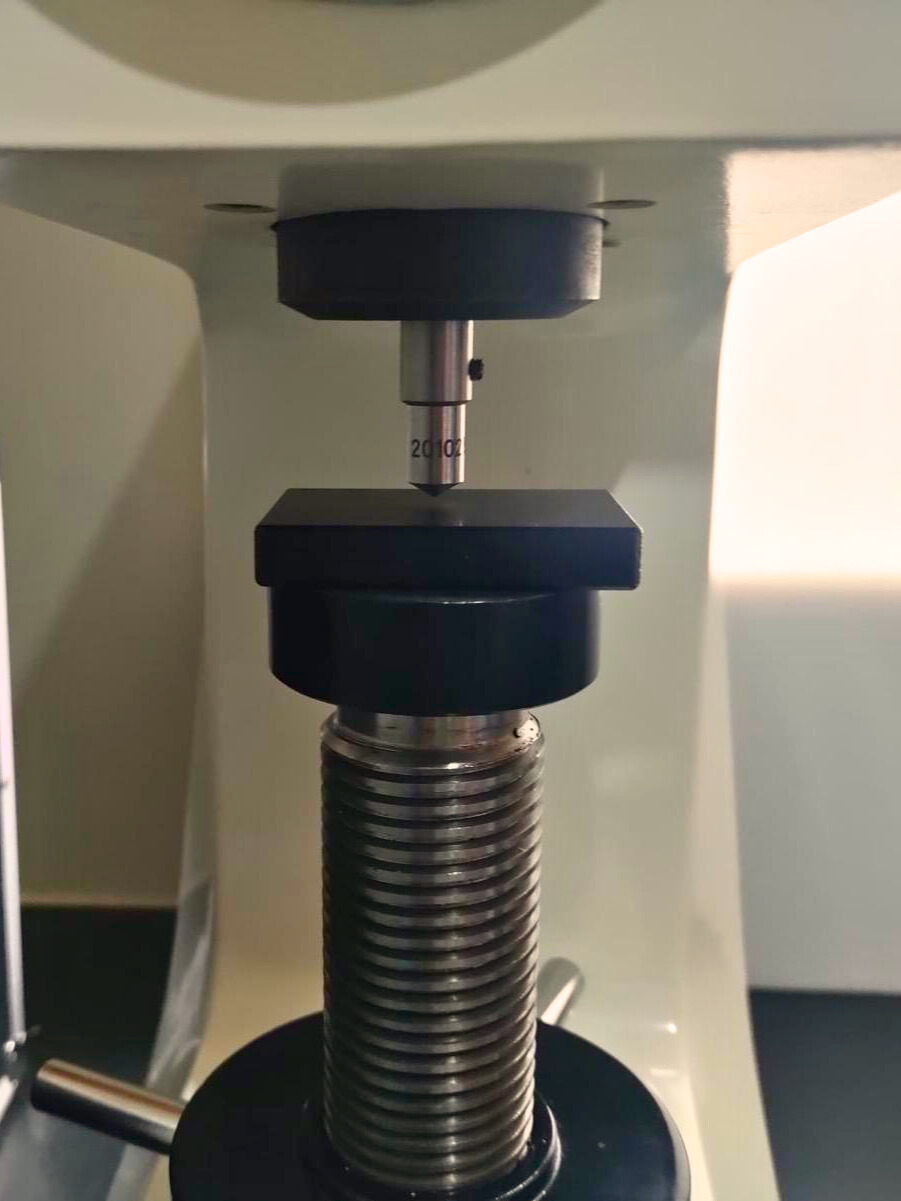

| 2 | Diamond Indenter | 1 | |
| 3 | 1/16″ Ball Indenter | 1 | |
| 4 | Anti-Dust Cover | 1 | |
| 5 | Small Flat Anvil | 1 | Dimaeter 58mm/ 2.28'' |
| 6 | V-Shaped Anvil | 1 | |
| 7 | B Scale Hardness Standard Block | 1 | |
| 8 | C Scale Hardness Standard Block | 2 | |
| 9 | Calibration Certificate | 1 | |
| 10 | Manual | 1 |
