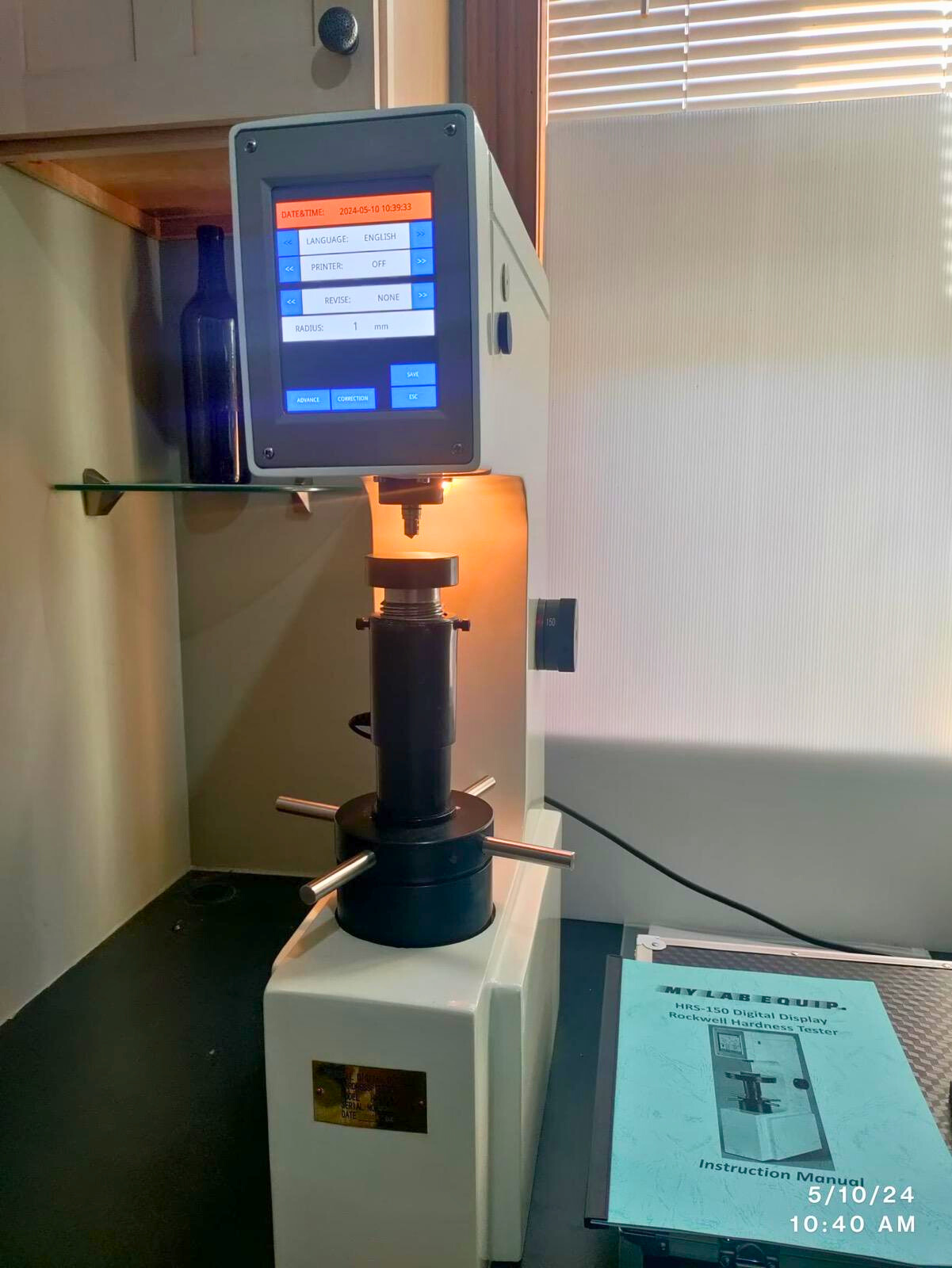

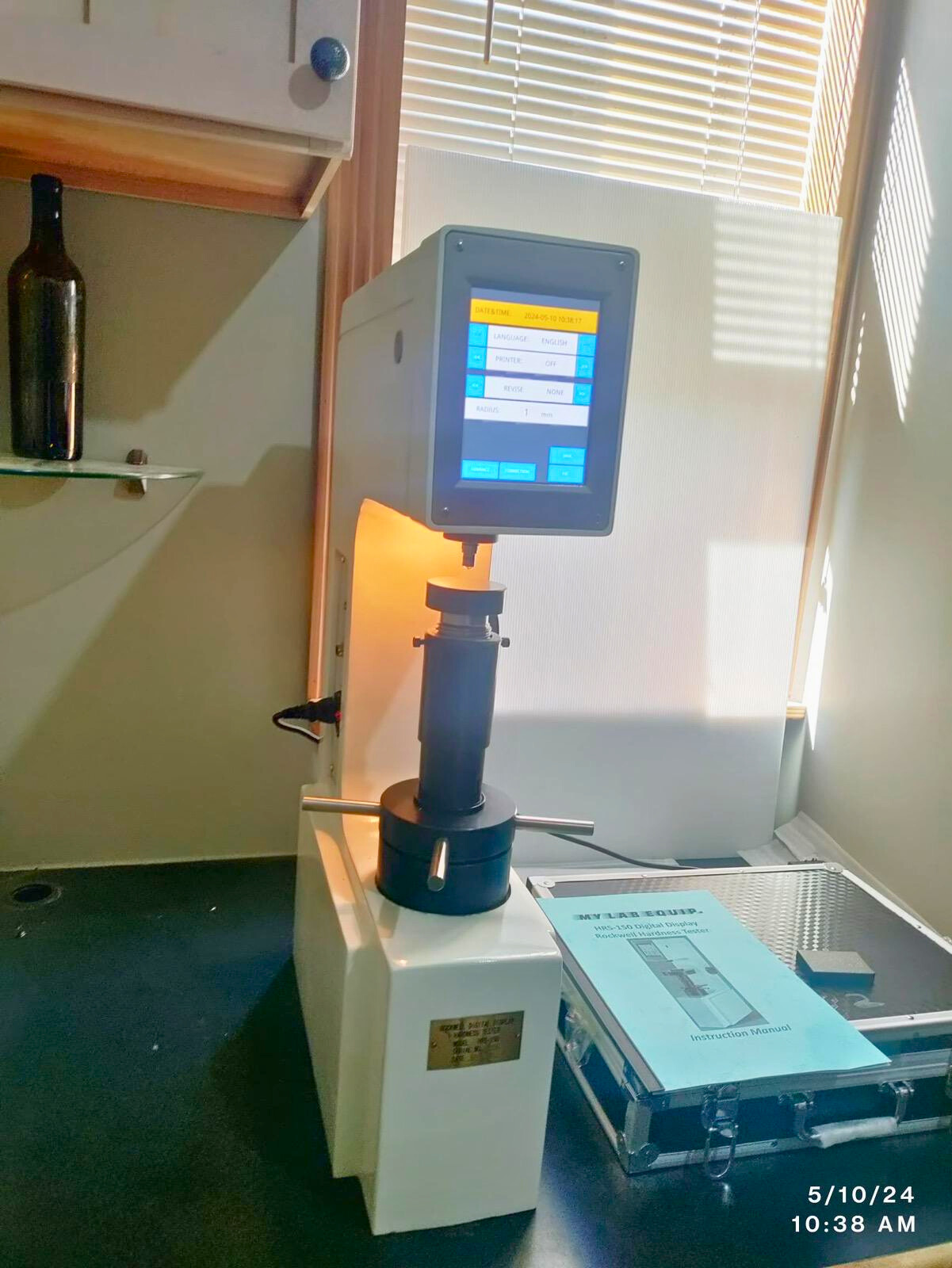

Digital Rockwell Hardness Tester HRS-150
Overview
The HRS-150 digital Rockwell hardness tester with a touchscreen interface is a precision instrument known for its remarkable stability. It boasts an upgraded mechanical design that enhances its overall stability and is equipped with an 8-inch touchscreen display and a high-speed ARM processor to ensure swift and efficient operation. This instrument provides a comprehensive range of capabilities, an easy-to-understand display, a user-friendly interface, and dependable performance.
Standards
ASTM E18:Standard Test Methods for Rockwell Hardness of Metallic Materials
Features
Stability: Enhanced mechanical structure and cast body for stability and precise results.
Automatic Correction: Corrects for cylindrical and spherical surfaces, and software-based hardness value adjustments.
Database: Automatically stores and organizes test data for easy managemen.
Customizable Test Points: Configure 1 to 5 test points per group.

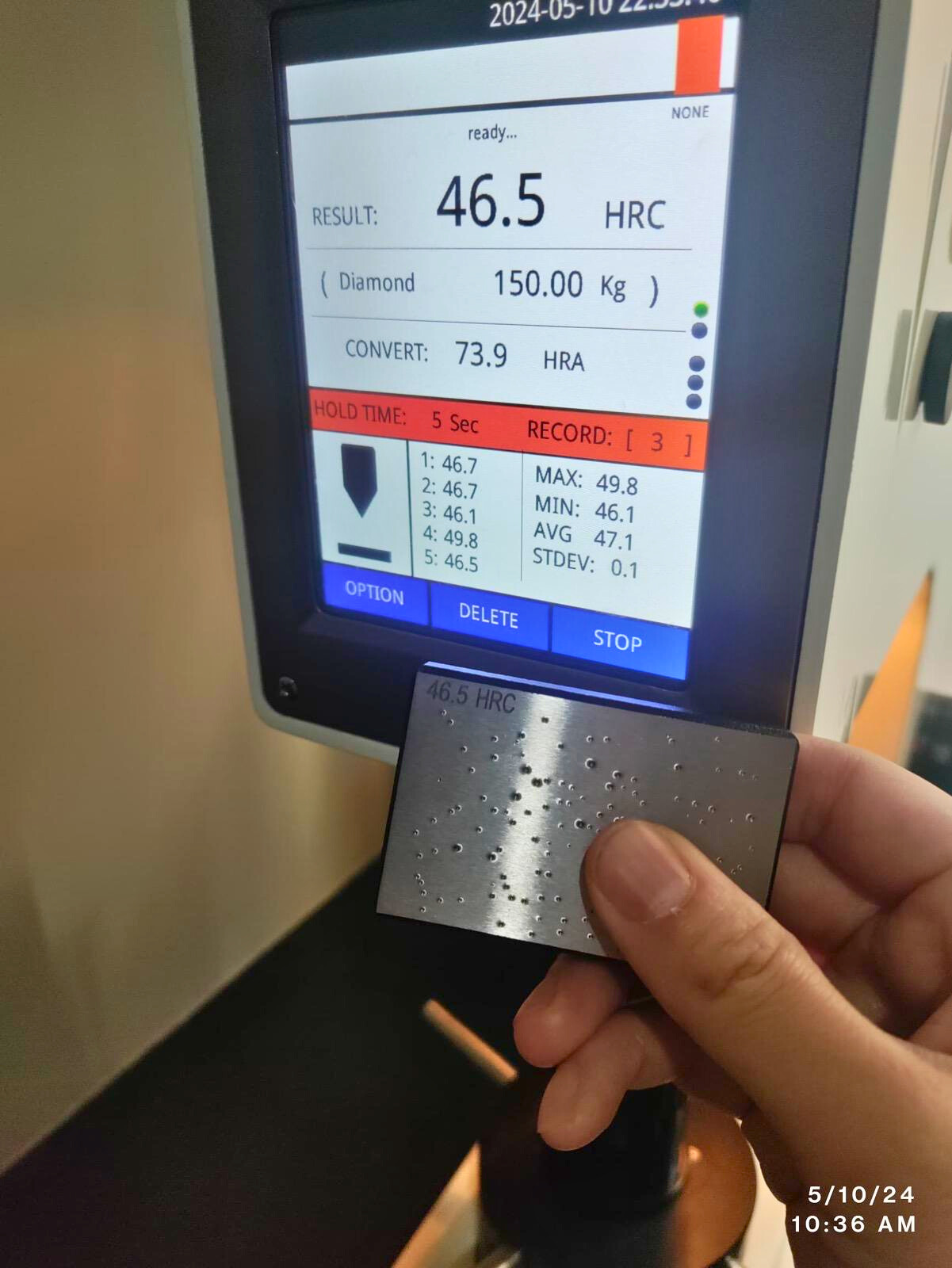

Statistical Analysis: Calculates max, min, and average hardness values.
Scale Conversion: Automatically converts hardness values between scales.
Data Transfer: Easily sends results to a computer via RS232.
Built-in Lighting: Independent lighting for low-light testing conditions.
Specifications
| Model | HRS-150 |
|---|---|
| Measurement Range | 20–95 HRA, 10–100 HRBW, 20–70 HRC |
| Hardness Scale | HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HRS, HRV |
| Test Forces | 588.4 N (60 kgf), 980.7 N (100 kgf), 1471 N (150 kgf) |
| Test Force Application | Automatic loading, holding, and unloading |
| Load Variation | Electrical load variation |
| Display Method | Touchscreen display |
| Holding Time | 1–30 s |
| Max. Specimen Height | 170 mm |
| Distance Center to Wall | 135 mm |
| Hardness Resolution | 0.1 HR |
| Touchscreen Size | 8 inches |
| Printing Method | Bluetooth printer |
| Data Storage Capacity | Up to 2000 records (maximum) |
| Dimensions (L×W×H) | 500 × 250 × 700 mm/19.6″ × 9.84″ × 27.6″ |
| Net Weight | 75 kg / 165.3 lbs |
| Gross Weight | 95 kg / 209.4 lbs |
Standard Delivery
| Item | Name | Qty | Note |
|---|---|---|---|
| 1 | Main Body | 1 | |
| 2 | Diamond Indenter | 1 | |
| 3 | 1/16″ Ball Indenter | 1 | |
| 4 | Anti-Dust Cover | 1 | |
| 5 | Large Flat Anvil | 1 | Dimaeter 150mm/ 5.91'' |
| 6 | Small Flat Avil | 1 | Dimaeter 58mm/ 2.28'' |
| 7 | V-Shaped Anvil | 1 | |
| 8 | A Scale Hardness Standard Block | 1 | |
| 9 | B Scale Hardness Standard Block | 1 | |
| 10 | C Scale Hardness Standard Block | 3 | |
| 11 | Calibration Certificate | 1 | |
| 12 | Manual | 1 |
