Palm-sized Smart 3D Scanner SIMSCAN
Features

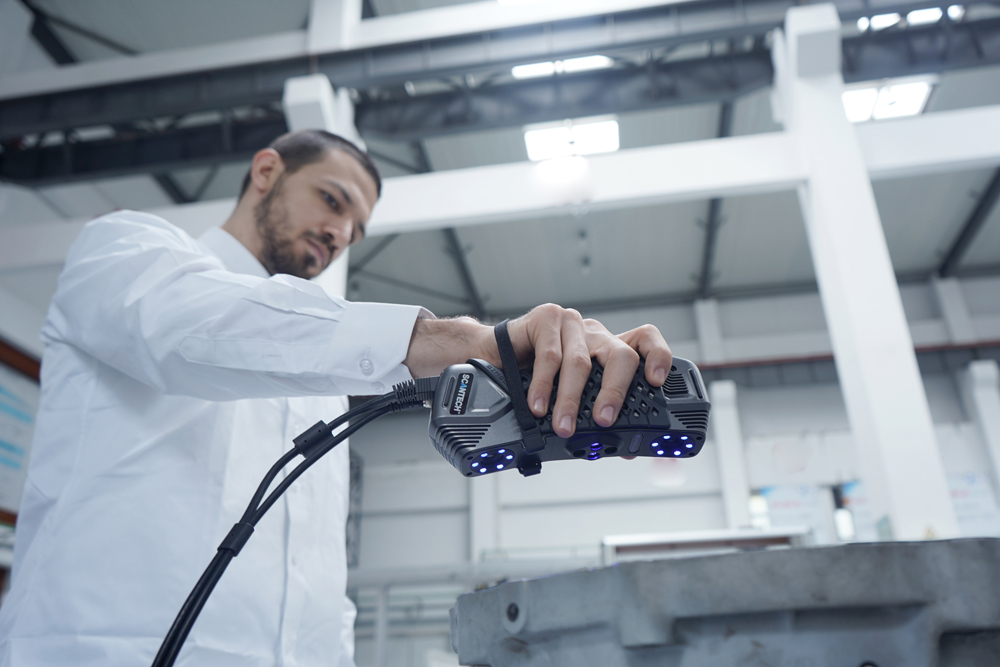

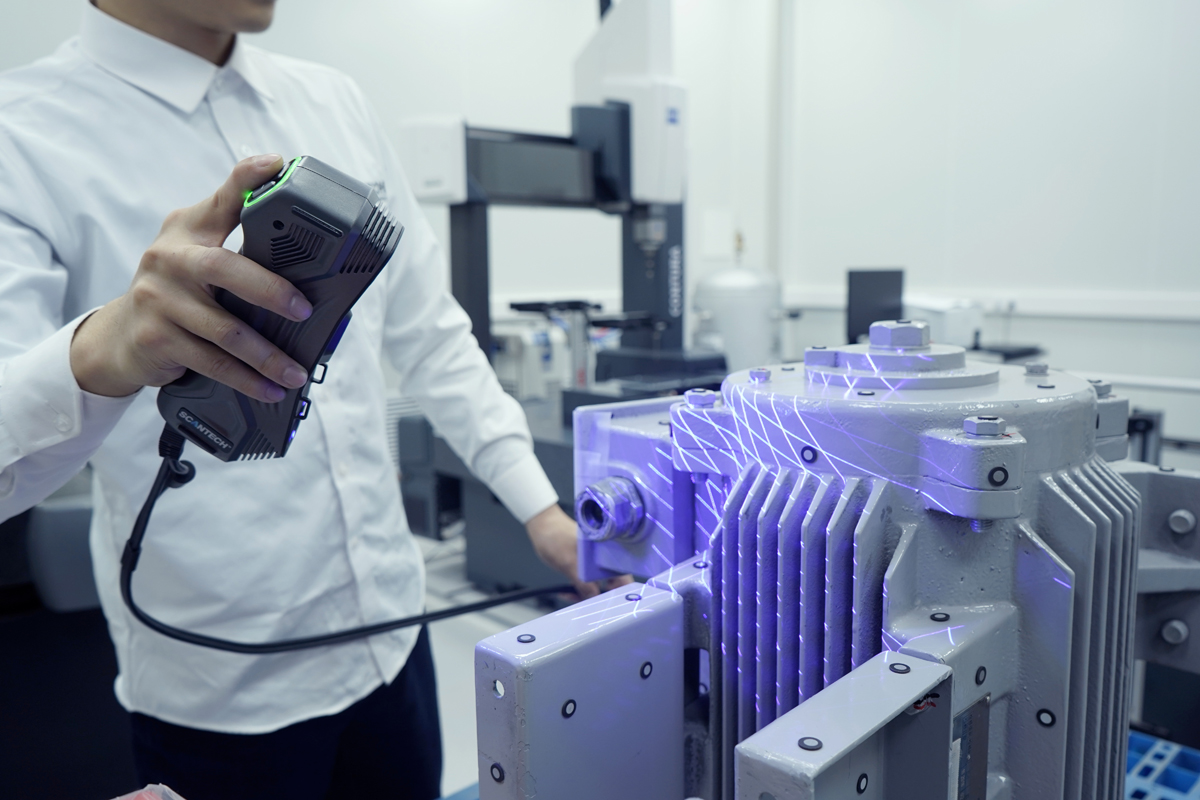

Single-handed Control
Accuracy 0.020 mm

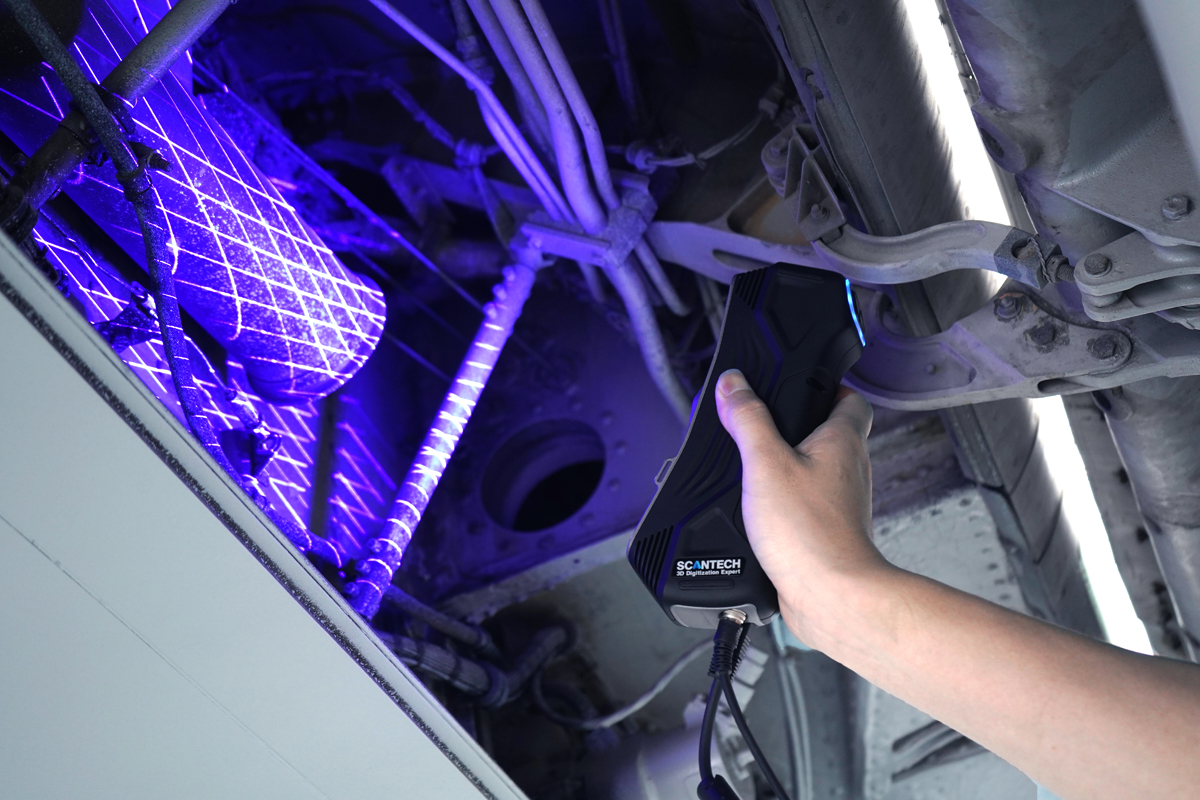

Narrow-space Measuring Booster

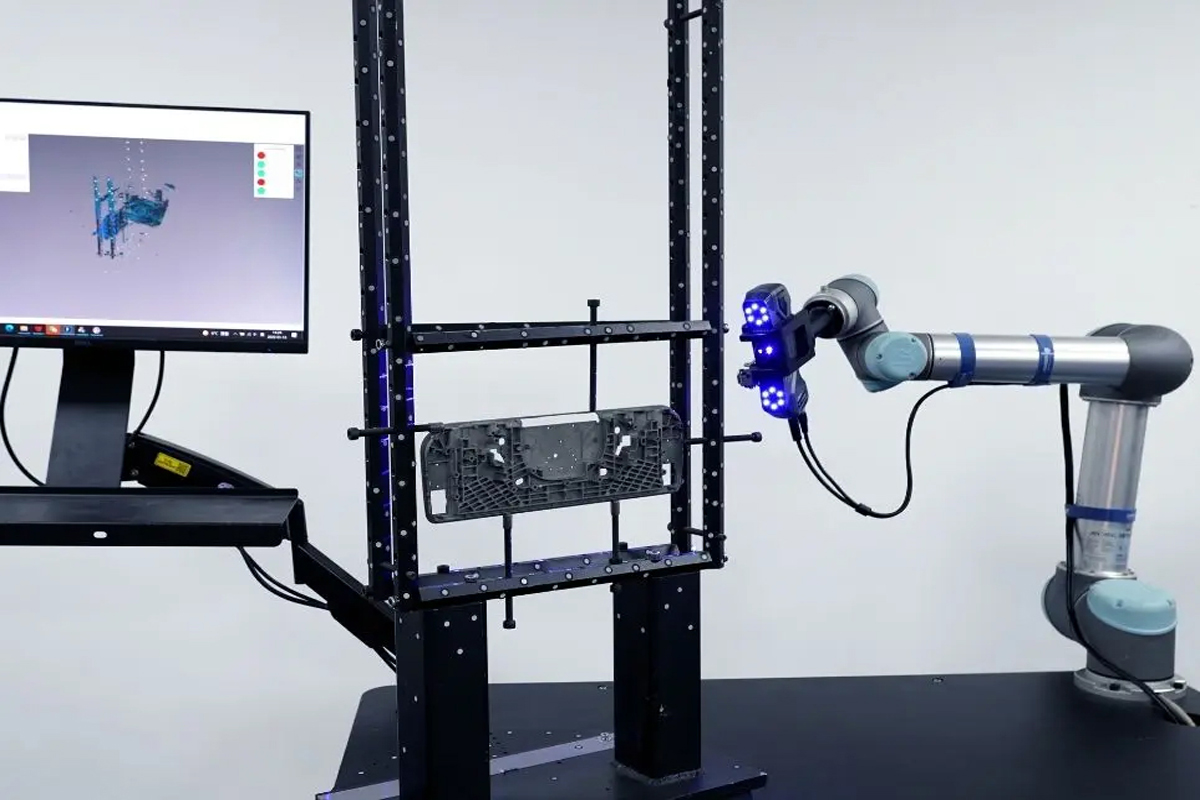

Automated 3D Measurement
Specification
| Type | SIMSCAN 42 | SIMSCAN 30 | SIMSCAN 22 |
|---|---|---|---|
| Scan mode-Ultra-fast scanning | 17 blue laser crosses | 11 blue laser crosses | 7 blue laser crosses |
| Scan mode-Hyperfine scanning | 7 blue parallel laser lines | ||
| Scan mode-Deep hole scanning | 1 extra blue laser line | ||
| Accuracy(1) | Up to 0.020 mm | ||
| Scanning rate up to | 2,800,000 measurements/s | 2,020,000 measurements/s | 1,250,000 measurements/s |
| Scanning area up to | 700 mm × 600 mm | 650 mm × 550 mm | |
| Laser class | CLASSⅡ (eye-safe) | ||
| Resolution up to | 0.020 mm | ||
| Volume accuracy(2) | Standard: 0.015 mm + 0.035 mm/m | Paired with MSCAN-L15: 0.015 mm + 0.012 mm/m | |
| Stand-off distance | 300 mm | ||
| Depth of field | 550 mm | ||
| Output formats | .stl, .obj, .ply, .asc, .igs, .txt, .mk2, .umk, and etc. | ||
| Operating temperature range | -10℃–40℃ | ||
| Interface mode | USB 3.0 | ||
| Dimensions | 203 mm × 80 mm × 44 mm | ||
| Weight | 570 g | ||
