TrackScan-Sharp
Features
Large-volume Measument
Remarkable Accuracy
Ultra-high Pixels for Intricate Details
Edge Computing & Impressive Performance
Specification
| Type | TrackScan-Sharp 49 |
|---|---|
| Scan mode - Ultra-fast scanning | 21 blue laser crosses |
| Scan mode - Hyperfine scanning | 7 blue parallel laser lines |
| Scan mode - Deep-hole scanning | 1 blue laser line |
| Accuracy | Up to 0.025 mm |
| Measurement rate up to | 2,600,000 measurements/s |
| Scanning area up to | 500 mm × 600 mm |
| Laser class | ClassⅡ (eye-safe) |
| Resolution up to | 0.020 mm |

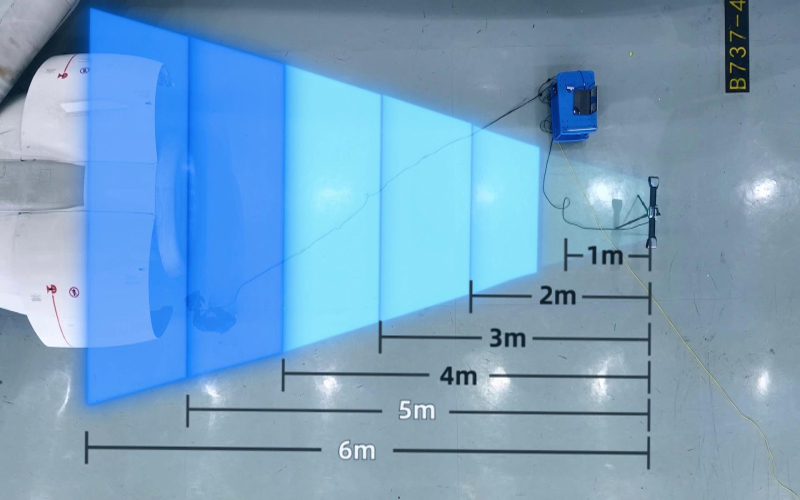

| Volumetric accuracy-10.4 m³ (Tracking distance 3.5 m) | - 0.049 mm |
| Volumetric accuracy-28.6 m³ (Tracking distance 5.0 m) | - 0.067 mm |
| Volumetric accuracy-49.0 m³ (Tracking distance 6.0 m) | - 0.089 mm |
| Volumetric accuracy (with MSCAN photogrammetry system) | 0.044 mm + 0.012 mm/m (>6m) |
| Hole position accuracy | 0.050 mm |
| Camera pixels of E-Track | 25 megapixels |
| Stand-off distance | 300 mm |
| Depth of field | 400 mm |
| Operating temperature range | 0-45 °C |
| Operating humidity range (non-condensing) | 10-90% RH |
| Interface mode | USB 3.0, Network Interface |
| Certification | CE, RoHS, WEEE |
